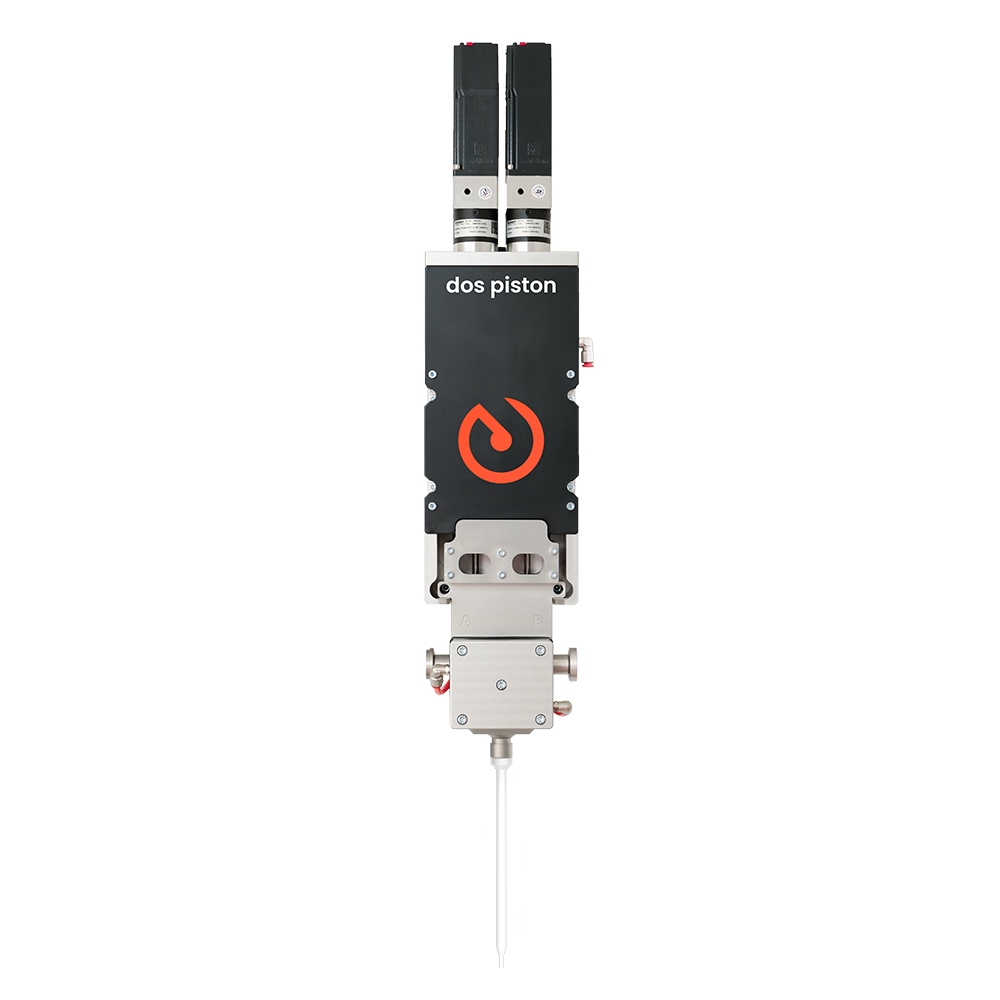

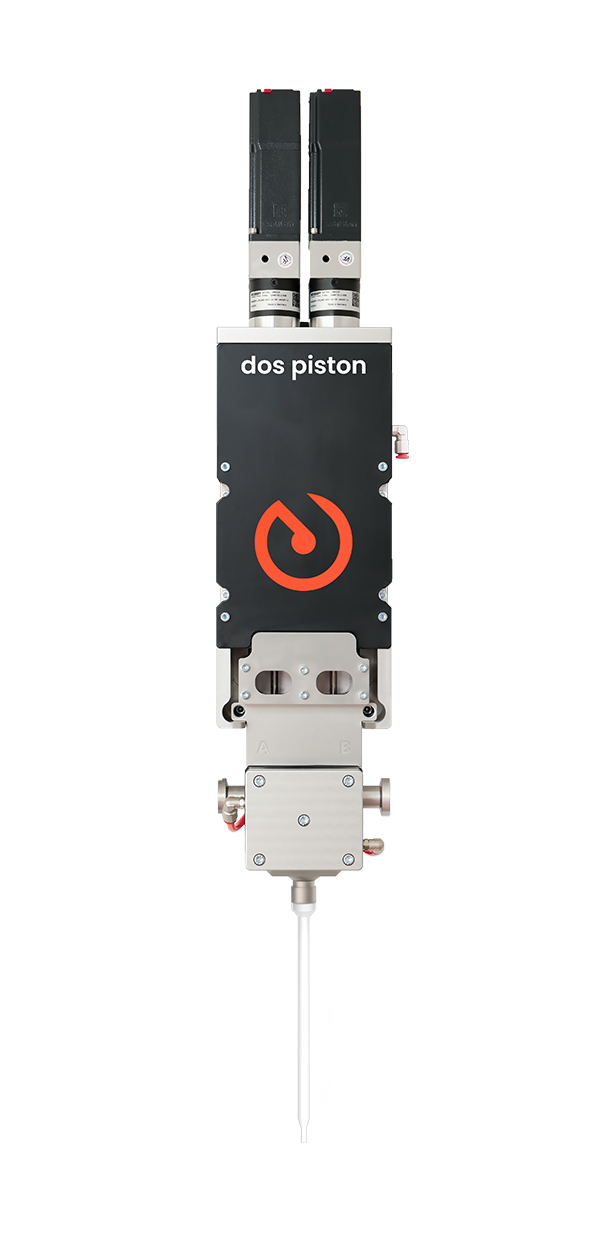

dos piston
piston dispenser
dos piston
piston dispenser
the all-rounder
of dispensing.
the all-rounder of dispensing.
dos piston is a future-oriented solution for all industrial dispensing processes. The different versions available make this all-rounder ideal for all dispensing tasks.
The technical innovations of the dos piston not only make dispensing processes in production more precise, but also safer, more efficient, more economical – and therefore more cost-effective.
Light, precise and efficient.
any questions about the product? contact us:
overview of variants

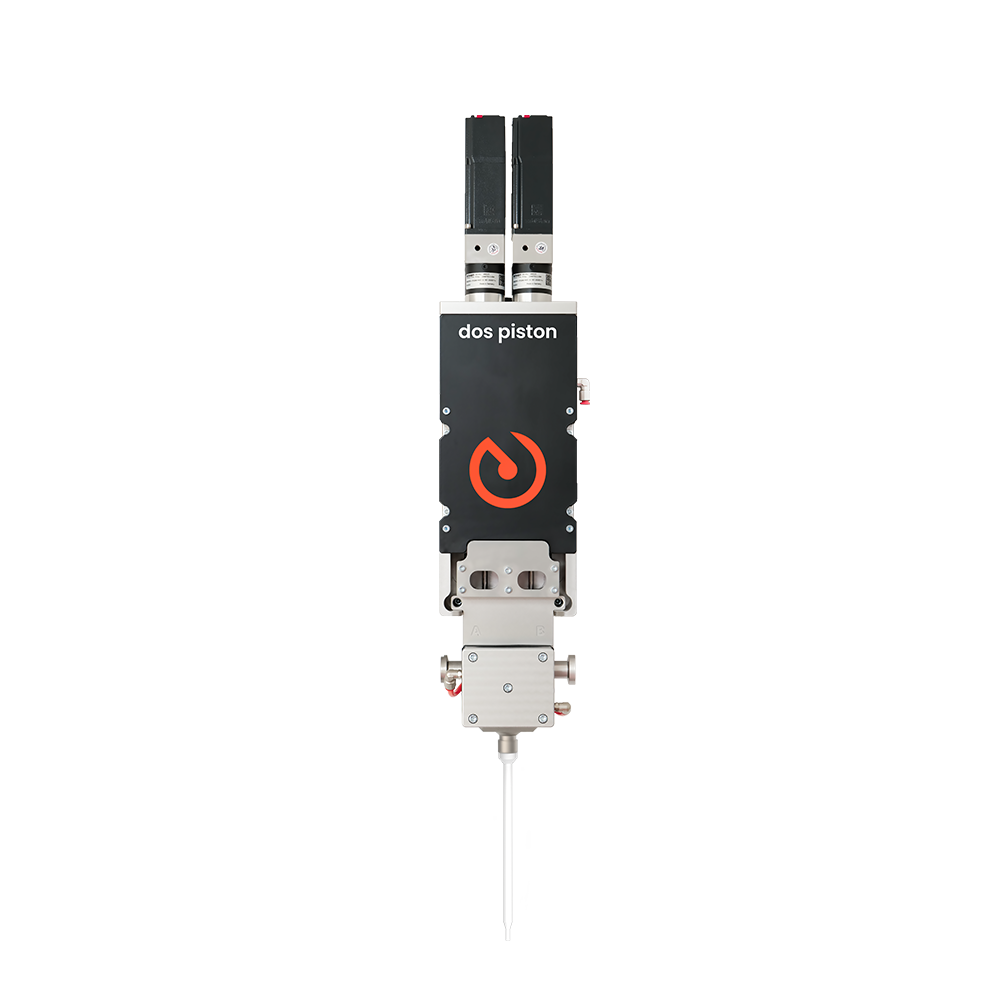

dos piston M 2C
(1C on request)
0.1 to 43 ml
Dispensing speed:
20ml/sec*
For abrasive and non-abrasive materials
Application examples:
Encapsulation of electronic components, sensor encapsulation, bonding of control units
dos piston L 2C
(1C on request)
5 to 106 ml
Dispensing speed:
30ml/sec*
for abrasive and non-abrasive materials
Application examples:
Encapsulation of heat pump motors, PCBs, antennas

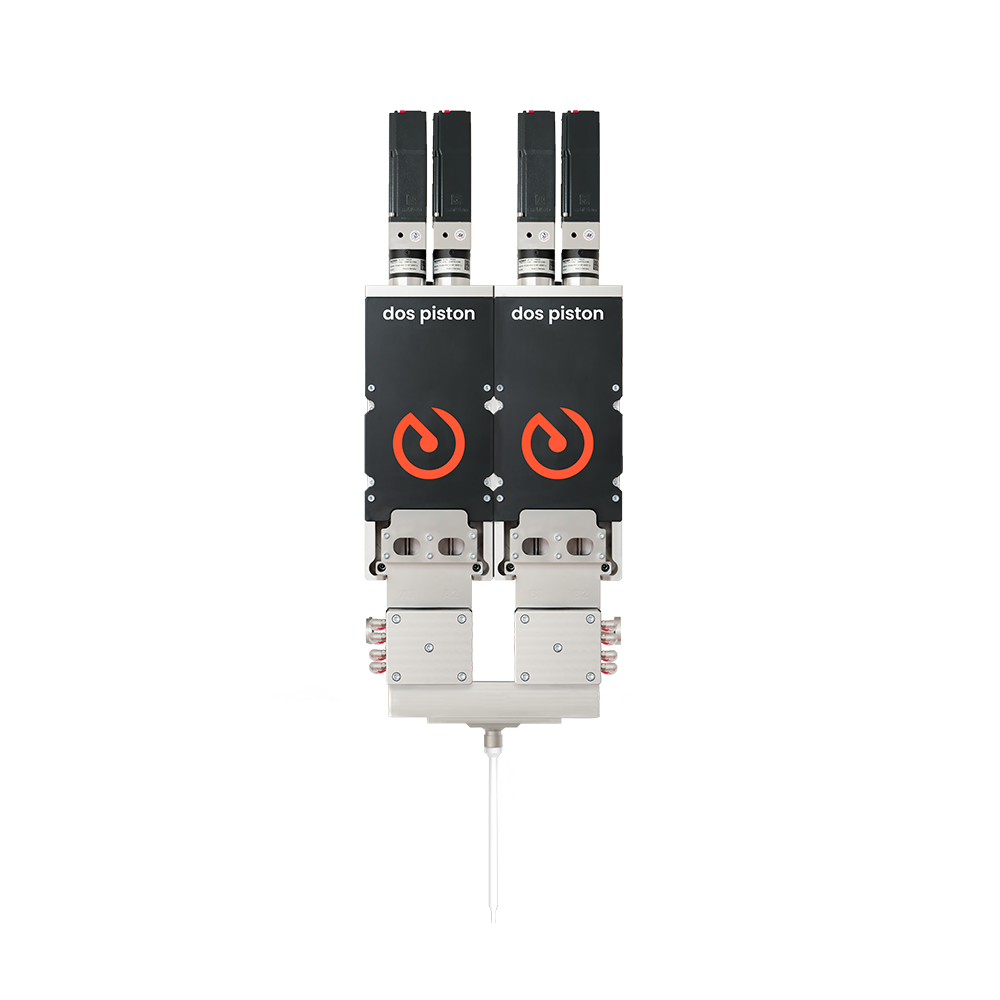

dos piston M – A 2C
(alternaiting)
continuos
Dispensing speed:
20ml/sec*
For abrasive and non-abrasive materials
Application examples:
Adhesive application for solar panels, potting of medium-sized winding goods

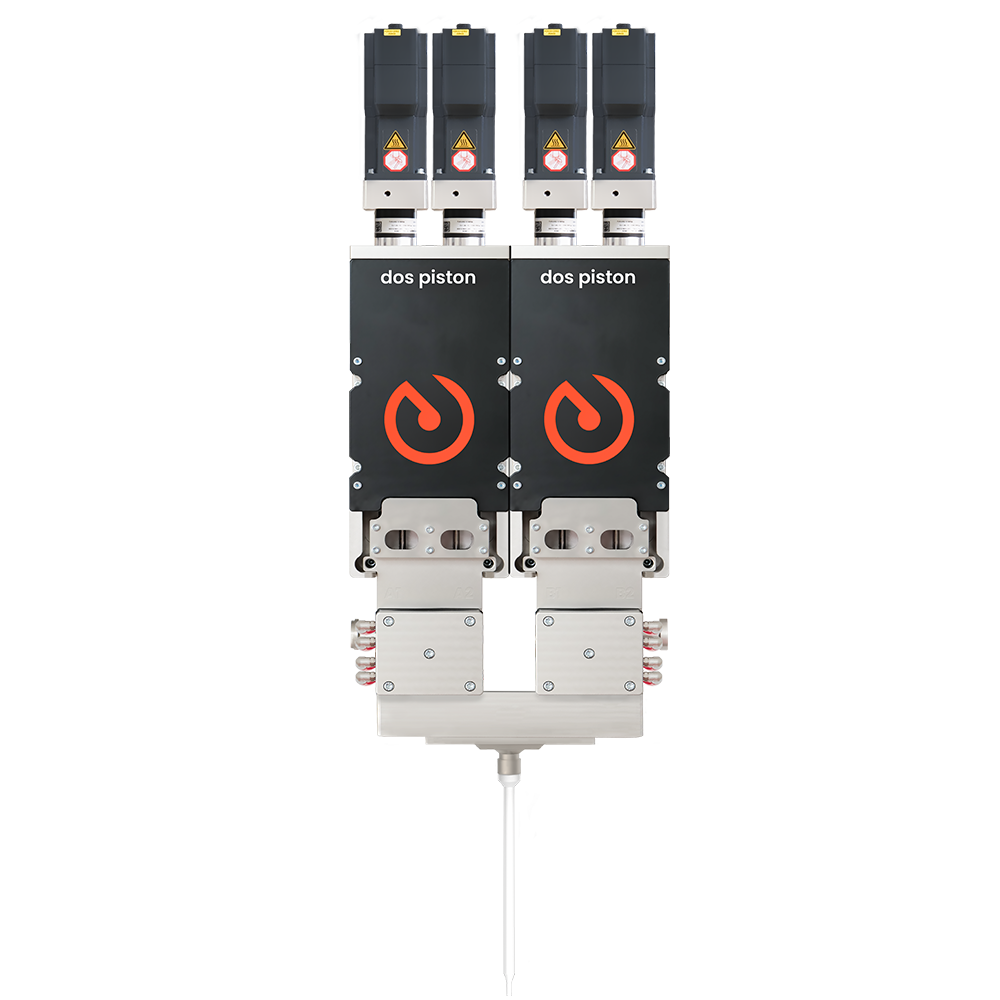

dos piston L – A 2C
(alternaiting)
continuous
Dispensing speed:
30ml/sec*
For abrasive and non-abrasive materials
Application examples:
Potting of motors/transformers, adhesive application on sandwich panels, potting of large winding goods
* (mixing ratio 1:1 2C at 1000 mPa·s)
this is why dos piston
is the right product for you
this is why dos piston is the right product for you
Intelligent
system control
- Robust analogue and digital precision sensors
- Complete information on system status available at all times
- Continuous process monitoring
Easy system
integration
- Modular structure: rapid change and exchange of valves
- Simple configuration of preset dispenser sizes
- Secure integration of exchange-proof assembly concepts
Flexible
mixing ratio
- Pre-set via standardised mechanical piston diameters
- Almost continuous fine adjustment of the mixing ratio via two motors and software-based finetuning
Innovative construction
with easy maintenance
- Maximum ease of maintenance through simplified change of membranes
- Maintenance in a few simple steps with easily accessible components
- Designed on the poka-yoke principle
these innovations enable
best-in-class performance
1
2
3
4
5
6
1
Flexible control of the mixing ratio
2
Sensors and control software
3
Flushing liquid
4
Flow-optimized material transport
5
Replaceable dispensing head
6
Mixing tube with feed screw
Innovative, flexible mixing ratio control (1)
The dos piston has two motors, one for each mixing component. This allows fine adjustment of the material mixing ratio (e.g. resin and hardener) via the software-based individual control of the two motors.
The advantages: Maximum flexibility and easy handling.
Sensors and control software (2)
An evaluation of the encoder data enables a reliable prognosis of the status of important parameters The pot life of each potting material is automatically stored by software to trigger an automatic warning message if the time is exceeded or a flush shot is taken.
Flushing liquid (3)
The cylinder is automatically flushed with every stroke to prevent deposits on the cylinder wall and wear on the valves/seals.
Flow-optimized material transport (4)
All material guides in the dos piston have been flow-optimized so that potting material can flow trouble-free and with high performance at every point.
Replaceable dispensing head (5)
The dos piston dispensing head can be separated from the lifting unit in just a few simple steps to enable quick maintenance and cleaning work.
Mixing tube with feed screw (6)
A mixing tube with a feed screw is attached at the dispensing outlet to ensure the homogeneous mixing of the components of the potting materials.
The mixing tubes are single-use products made of plastic.
Optional functions:
- Dispensing head and mixing tube heating
- Equipment for abrasive media.
technical data
| Variant | dos piston M |
| Dispensing volume* | 0.1 to 43 ml |
| Material viscosity | All viscosities |
| Dimensions excl. mixing tube (lxwxh) | 110 x 155 x 660 mm |
| Weight | 12.4 kg |
| Variant | dos piston L |
| Dispensing volume* | up to 106 ml |
| Material viscosity | All viscosities |
| Dimensions excl. mixing tube (lxwxh) | 125 x 200 x 760 mm |
| Weight | 16.3 kg |
| Variant | dos piston M – A (alternating) |
| Dispensing volume* | continuous |
| Material viscosity | All viscosities |
| Dimensions excl. mixing tube (lxwxh) | 160 x 285 x 695 mm mm |
| Weight | 28.2 kg |
| Variant | dos piston L -A (alternating) |
| Dispensing volume* | continuous |
| Material viscosity | All viscosities |
| Dimensions excl. mixing tube (lxwxh) | 185 x 355 x 815 mm |
| Weight | 39.8 kg |
* (Mixing ratio 1:1 2C)
technical data
| Variant | dos piston M | dos piston L | dos piston M – A (alternating) | dos piston L – A (alternating) |
| Dispensing volume* | 0.1 to 43 ml | up to 106 ml | continuous | continuous |
| Material viscosity | All viscosities | All viscosities | All viscosities | All viscosities |
| Dimensions excl. mixing tube (lxwxh) | 110 x 155 x 660 mm | 125 x 200 x 760 mm | 160 x 285 x 695 mm | 185 x 355 x 815 mm |
| Weight | 12.4 kg | 16.3 kg | 28.2 kg | 39.8 kg |
* (Mixing ratio 1:1 2C)
how dos piston works
The potting compound is fed from material preparation to the dispenser.
The dispenser is filled with the potting materials.
Die Dosierkolben pressen die Vergussmaterialien im exakten Mischungsverhältnis durch den Dosierkopf.
The potting materials are mixed and homogenised at the dispensing outlet in the feed screw.
The complete potting compound is applied to the component providing the best dispensing results.
