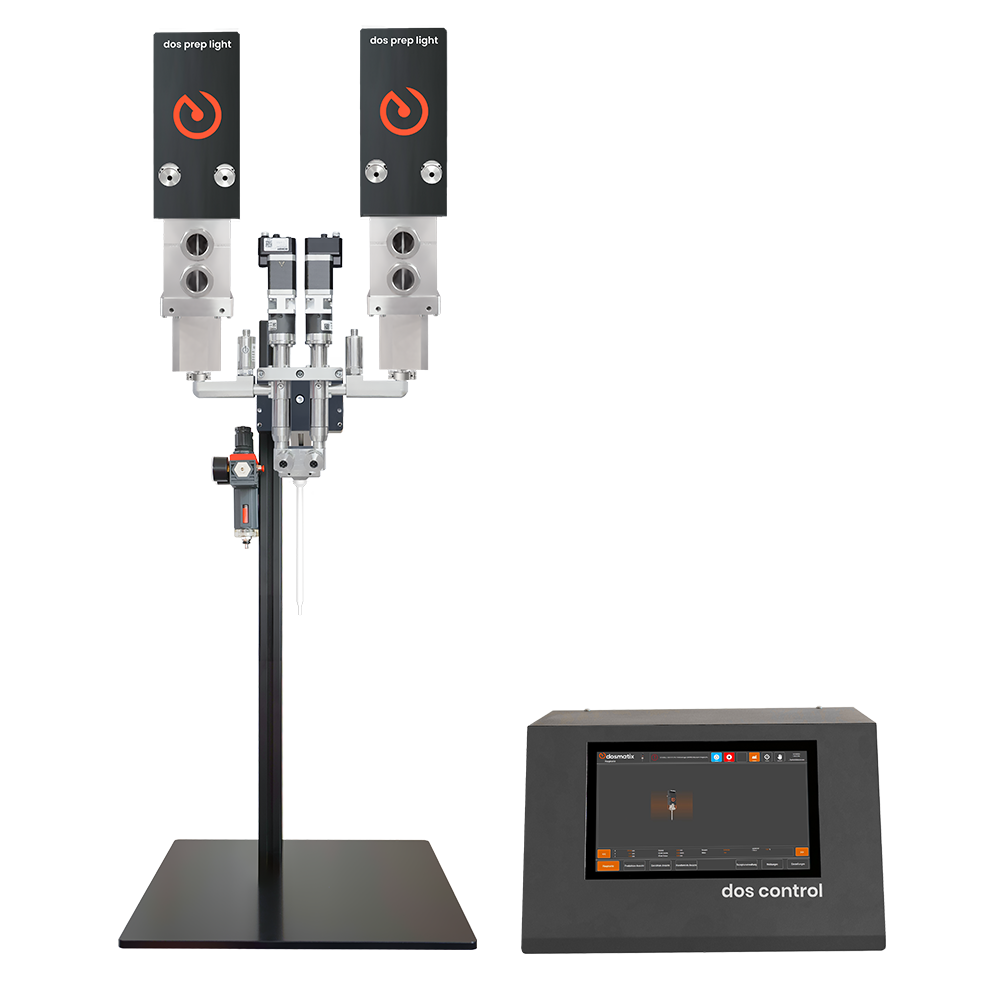

smart preparation for small volumes.
smart, unique and efficient – perfect for laboratory applications and small series processes
any questions about the product? contact us:
Space-saving design
Flexible filling options
Continous material recirculation
Fill level monitoring
Vacuum pump or ejector
Space-saving design (1)
This innovative solution for preparing small volumes saves space by integrating seamlessly into dispensing systems and overall systems – without requiring additional space.
Flexible filling options (2)
The material can be filled in two freely selectable ways: Hose solution or funnel.
Fill level montoring (3)
Two sensors monitor the fill level to prevent interruptions in operation. In addition, sight glasses make it easy for the operator to check the level.
Vacuum pump or ejector (4)
Optional: heating (5)
The optional equipment with a heater enables heating the material up to 60°C.
Variant | S |
Volume per variant | 0.5 l |
Feed volume | 30 ml/stroke |
Vacuum level Vacuum pump (optional) | 5 mbar |
Vacuum level Ejector | 150 mbar |
Maximum temperature | 60 °C (with additional option heating) |
Weight | 6.5 kg |
Height | 570 mm |
Variant | L |
Volume per variant | 3.0 l |
Feed volume | 30 ml/stroke |
Vacuum level Vacuum pump (optional) | 5 mbar |
Vacuum level Ejector | 150 mbar |
Maximum temperature | 60 °C (with additional option heating) |
Weight | 12 kg |
Height | 1070 mm |
Material extracted from the original containers and filled into the dos prep light
Continuous material circulation for optimally prepared material.
Optionally with heating.
Transfer of the potting material
to the dispenser.
(Starter) solution
Cost-effective and space-saving alternative for manual dispensing applications.
Individually combinable
Individual products can be combined or integrated into production lines.
Potting under atmosphere
Automated dispensing systems as standalone systems offer the ideal solution for series products.
Potting under
vacuum
Depending on the application, potting under vacuum is required for challenging potting.
