integration module
individually integrated and combinable
integration-
module
individually integrated and combinable
individually integrated
and combined.
individually integrated and combined.
Integration components can be integrated into production lines as individual products or in combination with other dosmatix products.
They are ideal for replacing, renewing or expanding existing products.
This is why an integration module is the right solution
▶ Simple integration thanks to standardized interfaces
▶ Replacement as part of the new investment
▶ Flexible combination options and size variants
sealing, bonding, potting, sealing, insulating, thermal management
questions about the product? contact us:
the integration module at a glance
1
2
3
1
Dispenser (1)
2
Material
preparation (2)
3
Kinematic (3)

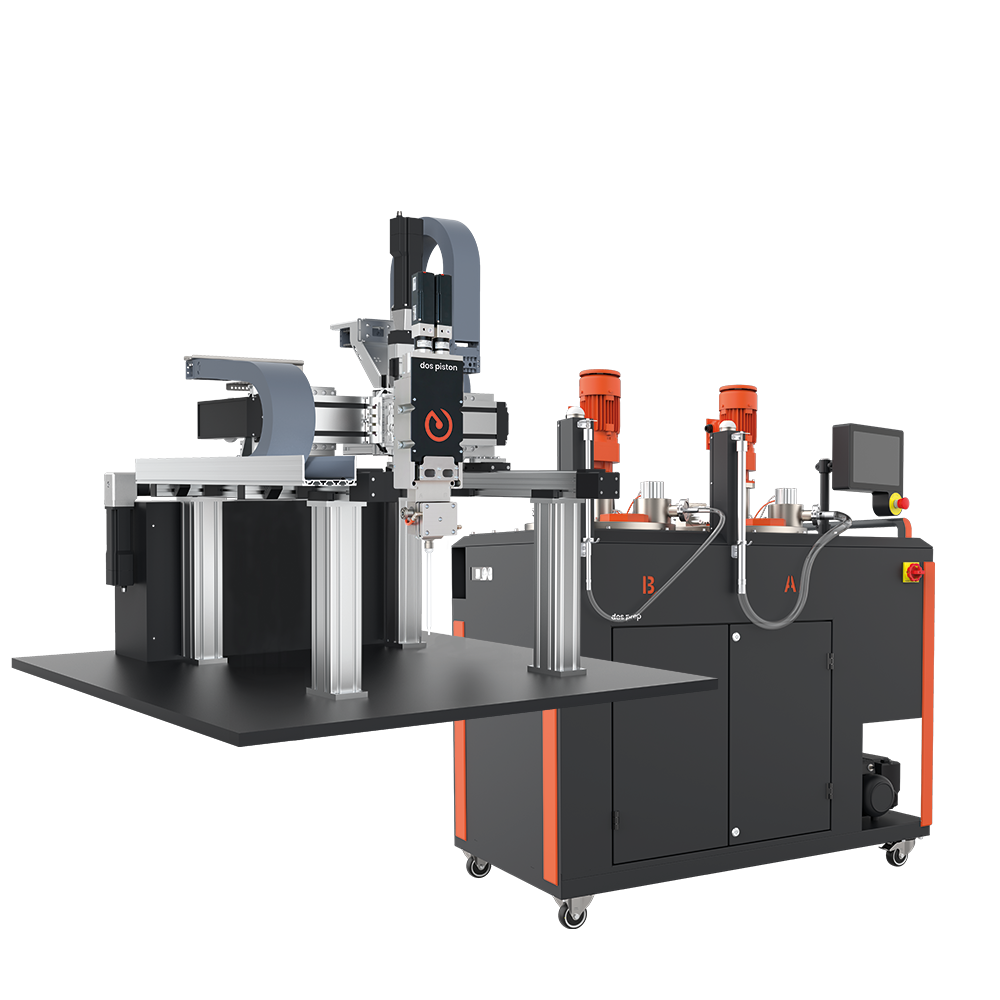

combination example
dosmatix offers you the option of individually combining standardized products to create the perfect potting process for your specific material and production requirements. We combine components from the following product categories:
Dispenser (1)
Depending on the requirements the integration module can be equipped with a piston dispenser dos piston or an progressive cavity dispenser dos screw.
Material preparation (2)
The material preparation and feeding depends on the material and the application. The following options are available: dos prep light, dos prep, dos feed C and dos feed H.
Kinematic (3)
The movement of the dispenser can be controlled by dos in-line kinematics, including an intuitive control unit. This solution can be integrated into existing production lines perfectly.
system base
Link to: dos in-line

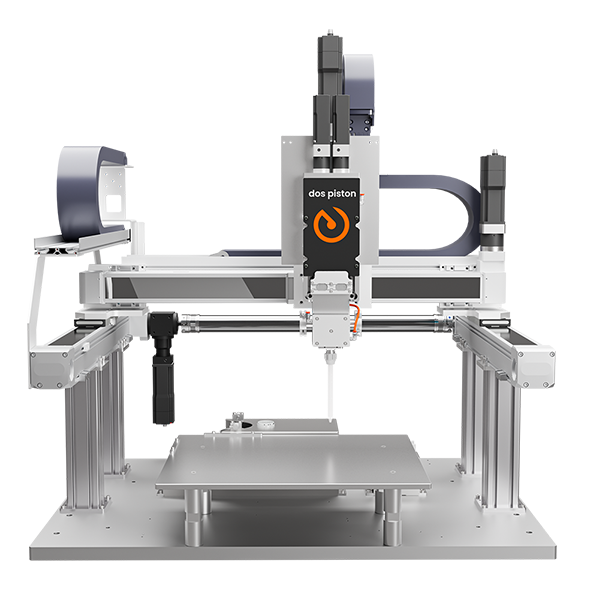

dos in-line
Axis system as integration module
Movement in 3 degrees of freedom
For abrasive and non-abrasive materials
combinable dispenser
Link to: dos piston
dos piston
Piston dispenser
Material potting from
0.1 to 106 ml
For abrasive and non-abrasive materials
Link to: dos screw
dos screw
Progressive cavity dispenser
Spot and endless
dispensing from 15 μl
For abrasive and non-abrasive materials
Link to: dos gear
dos gear
Gear dispenser
Continuous and volumetric
dispensing system
For unfilled, high-viscosity
media
combinable material preparation
Link to: dos prep light
dos prep light
Filling volume 0.5 and 3 liters
Material viscosity up to 70,000 mPa·s
For abrasive and non-abrasive materials
Link to: dos prep
dos prep
Filling volume per tank up to 60 liters
Material viscosity up to 70,000 mPa·s
For abrasive and non-abrasive materials
Link to: dos feed C
dos feed C
Feeding from cartridges
Material viscosity from 70,000 mPa·s
For abrasive and non-abrasive materials
Link to: dos feed H
dos feed H
Feeding from material hobbocks
Material viscosity from 70,000 mPa·s
For abrasive and non-abrasive materials
